MDI Float Switches

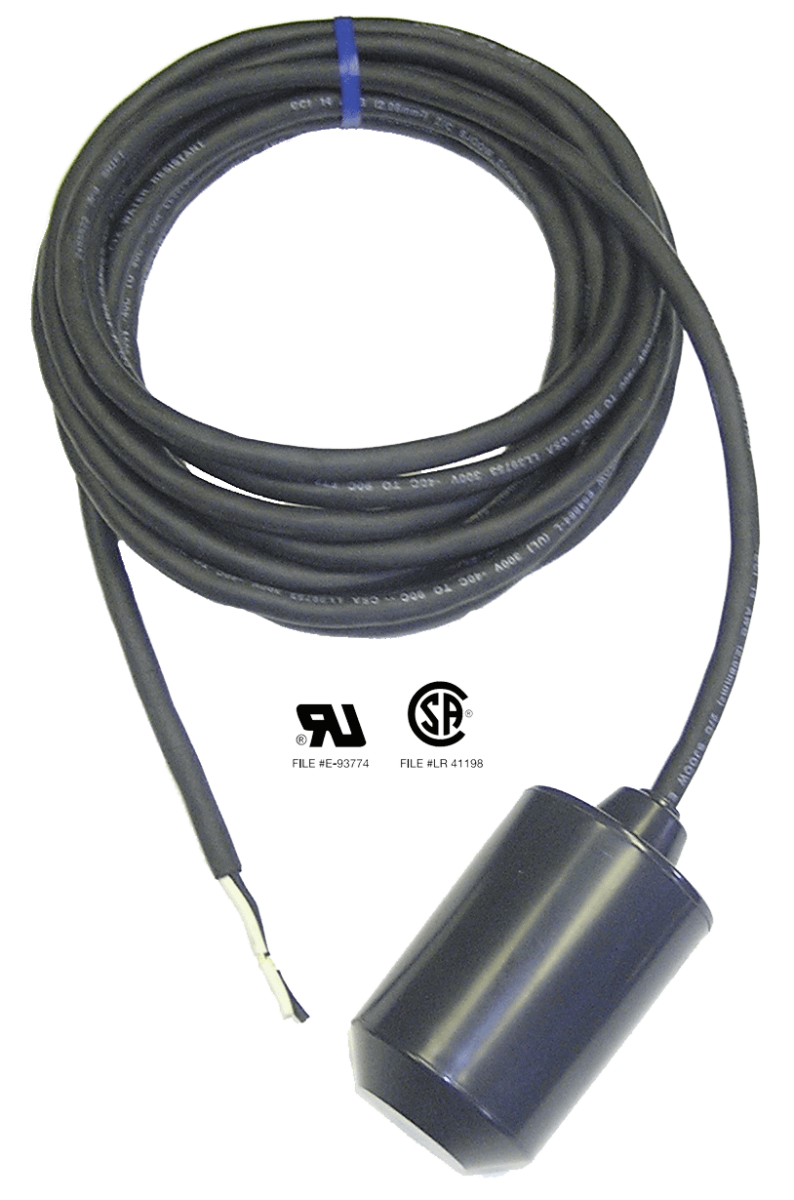

MDI Pilot Duty Float Switch- Made in the USA
The Mechanical activated float material is High Impact Polystyrene for normal alarm, sump pump or water applications, For sewage, 1 or 2 HP or high temperature, 86°C (186°F) requirements Acrylonitrile Butadiene Styrene, (ABS) float material is provided. These high quality float switches are designed for light duty, pilot duty or control panels. The float switch is as normally open (pump down) (circuit is complete when the float is elevated. This float has skived ends, where the insulated wire leads inside the cable are intended to be wired into other system components inside a junction box.
Applications
- Septic tanks
- Sump pits
- Holding tanks
- Pump chambers
- Water tanks
- Industrial processes
Key Features
- Mechanical (Contains no mercury) UL 508 listed
- Normally Open (Pump Down)
- Rated for temperatures up to 180°F
- Available in 120/240VAC bare lead models
- 10' Flexible 16 Gauge 2 Conductor SJOW (UL & CSA) CPE (Chlorinated Polyethylene) Jacketed
- UL, CSA, and CE approved
- Narrow angle
- Multiple cable lengths: 10, 15, 20, 30, 40, 50 ft.
Specifications
- Voltage: 120/240VAC
- Max. temperature: 180°F
- Configuration: Normally Open/Pump Down
- Cable lengths: 10 ft., 15 ft., 20 ft., 30 ft., 40ft., 50 ft.
Normally Open — Contacts are open while hanging down and will close on a rising liquid level. Typically used for high level alarms and empty tank applications.
Normally Closed — Coming soon. Typically used for low level alarms and fill tank applications.
